Quick Answer

Kedah high-tech factory flooring refers to ESD-safe (electrostatic discharge) flooring systems conductive vinyl tiles, epoxy coatings, or raised access floors — installed in semiconductor, electronics, and aerospace factories in Kedah, Malaysia to dissipate static electricity and protect sensitive components in compliance with IEC 61340-5-1 and ANSI/ESD S20.20.

1. Why Kedah’s High-Tech Industry Demands Specialist Flooring

Kedah high-tech factory flooring is essential for semiconductor and electronics manufacturers that require strict ESD control, compliance, and operational reliability in Malaysia. Anchored by the Kulim Hi-Tech Park (KHTP) — home to Infineon Technologies, AT&S, Intel, and a rapidly expanding ecosystem of semiconductor and electronics firms — the state recorded RM 20.38 billion in realized investments in 2024, with manufacturing sector growth projected at 3.0% for 2026.

Behind every cleanroom and surface-mount assembly line in these factories sits a critical, often overlooked infrastructure element: the floor. Kedah high-tech factory flooring is not ordinary industrial flooring. It is a precision-engineered, performance-certified system designed to eliminate the invisible enemy — electrostatic discharge (ESD) — that costs the global electronics industry billions of dollars in component damage every year.

According to the EOS/ESD Association, ESD events are responsible for approximately 25% of all electronic component failures in manufacturing environments. A single uncontrolled static discharge can permanently damage — or introduce a latent defect into — a semiconductor device worth hundreds of ringgit. Multiply that across a Kulim fab running 24/7, and the stakes become immediately clear.

This guide is written for industrial engineers, facility managers, and procurement decision-makers in Kedah who need to select, install, and maintain ESD-compliant factory flooring. We cover everything from technical standards to cost benchmarks and explain why TAKO — Malaysia’s leading ESD flooring specialist since 1979 — is the trusted partner for high-tech factories across the state.

2. What Is ESD Flooring and How Does It Work?

Electrostatic Discharge (ESD) occurs when two objects at different electrical potentials come into contact or close proximity, causing a sudden transfer of static charge. In high-tech factories, the primary pathway for ESD is the human body — a worker walking across an ordinary vinyl floor can generate over 35,000 volts of body charge under low-humidity conditions.

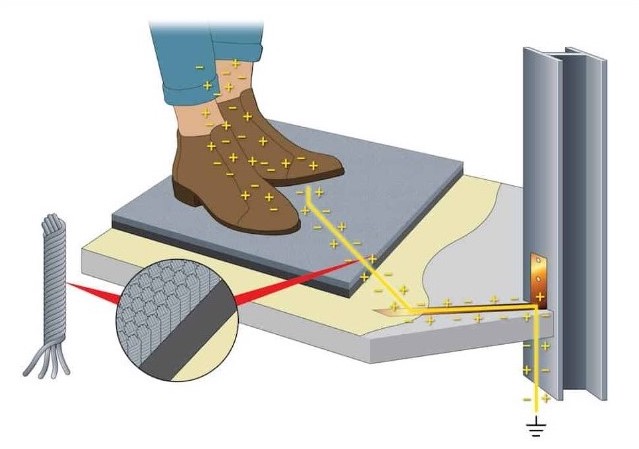

ESD flooring interrupts this pathway by creating a controlled, measurable electrical path from the walking surface to an earth ground. Conductive or static-dissipative materials embedded in the flooring tile or epoxy coating continuously drain static charge at a safe rate, preventing dangerous charge accumulation.

The key electrical parameter is surface-to-ground resistance:

• Conductive flooring: 2.5 × 10⁴ to 1.0 × 10⁶ ohms — fastest discharge, used where maximum protection is required.
• Static dissipative flooring: 1.0 × 10⁶ to 1.0 × 10⁹ ohms — controlled discharge, balances safety and ESD protection.

Both categories, when properly grounded, prevent Body Voltage Generation (BVG) from exceeding 100 V — the critical threshold defined by ANSI/ESD S20.20 for ESDS (ESD-Sensitive) device handling areas.

3. Applicable Standards: IEC 61340 and ANSI/ESD S20.20

For any Kedah high-tech factory flooring installation to pass a customer or third-party audit, it must comply with internationally recognized ESD standards. The two most widely enforced in Malaysian semiconductor and electronics manufacturing are:

IEC 61340-5-1

Published by the International Electrotechnical Commission (IEC), this standard establishes protection requirements for ESD-sensitive electronic devices. It specifies floor resistivity limits, grounding requirements, and test methods applicable to all high-technology manufacturing environments. Factories supplying to European or Japanese OEMs commonly require IEC 61340 compliance documentation.

ANSI/ESD S20.20

Developed by the ESD Association (ESDA) and adopted by American multinationals operating in Kedah — including Intel and Celestica — ANSI/ESD S20.20 defines a comprehensive ESD Control Program (ECP) that includes floor resistance requirements (STM 7.1), resistance through shoes (STM 97.1), and body voltage generation (STM 97.2). The 2025/2026 update maintains the surface-to-ground resistance limit at <1.0 × 10⁹ ohms.^[2]

Testing Requirements

Compliance is not self-certifiable. Testing must be performed by an iNARTE-certified ESD Control Engineer using calibrated instruments, in the presence of the customer, measuring:

• Surface Resistance (point-to-point)
• Resistance-to-Ground (RTG)
• Body Voltage Generation (BVG) with actual footwear

TAKO’s testing team meets this exact requirement — every installation includes on-site certification and an issued compliance certificate.

4. Kedah’s High-Tech Manufacturing Landscape

Understanding where and why Kedah high-tech factory flooring is in demand requires understanding the industrial geography of the state.

Kulim Hi-Tech Park (KHTP)

Established in 1996 and spanning 4,000+ acres in Kulim, KHTP is Malaysia’s premier front-end semiconductor manufacturing hub. Key anchor tenants include:^[3]

• Infineon Technologies — Kulim 3 (world’s largest 200mm SiC power semiconductor fab, €2 billion Phase 1 investment opened 2024)
• AT&S Malaysia — IC substrate manufacturing
• Intel Malaysia — Advanced packaging operations
• Celestica — Aerospace and defence electronics assembly (ISO7 cleanrooms)

Every one of these facilities operates in a controlled ESD environment — from wafer fabrication floors and cleanroom corridors to test-and-measurement labs and SMT assembly lines. Each square foot of flooring in these factories must meet ANSI/ESD or IEC standards.

Kedah Science and Technology Park (KSTP)

Located near Bukit Kayu Hitam on a 1,900-acre footprint, KSTP is Kedah’s next-generation R&D and advanced manufacturing hub focused on green technology, advanced materials, and the border economy with Thailand. As new R&D facilities and pilot manufacturing lines come online, demand for Kedah high-tech factory flooring in this zone is growing rapidly.(3)

Gurun Industrial Area

Home to multiple electronics and automotive component manufacturers — including Petronas Research Center — Gurun’s factories require ESD-controlled environments in maintenance workshops, battery-management system assembly areas, and advanced testing laboratories.

5. Types of Kedah High-Tech Factory Flooring

Not all ESD flooring is equal. The right choice for a given Kedah factory depends on the production process, substrate condition, maintenance capability, and budget. Here are the three primary systems:

ESD Conductive Vinyl Tiles (CVT)

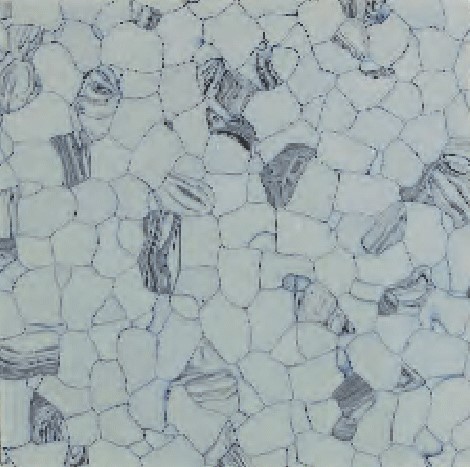

TAKO’s flagship product — available in the TK-805, TK-808, TK-1011, TK-8603, and other variants — is manufactured using pressing technology (not calendering) to create a homogenous tile with conductive veins built directly into the body of the tile. This means ESD properties are independent of humidity and temperature, do not migrate to the surface, and are covered by TAKO’s lifetime warranty on ESD properties.

• Modular, field-repairable (spot replacement possible)
• Compatible with raised flooring systems
• Cleanroom-grade finish (hot-air welded joints)
• Hard-wearing, suitable for forklift and cart traffic

ESD Epoxy Floor Coating

Seamless epoxy systems provide a smooth, chemical-resistant finish ideal for wet-process labs and semiconductor fabs. They are applied as a liquid and cure to a continuous monolithic surface — eliminating grout lines where contaminants accumulate. Best for new construction or full substrate resurfacing. Pricing starts at RM 15–35+ per square foot, depending on the number of coats, primer, and topcoat specifications required.

ESD Raised Access Floors

Common in legacy cleanrooms and data center spaces within Kedah factories, raised access floors allow under-floor cable management while providing a certified ESD surface. TAKO supplies, installs, and certifies raised floor systems with conductive panel finishes. These are particularly relevant for older KHTP facilities being refurbished for new semiconductor tenants.

6. Flooring Comparison: Which Type Suits Your Factory?

Use the table below to identify the right Kedah high-tech factory flooring system for your facility’s specific requirements.

For most Kedah semiconductor and electronics factories, TAKO’s ESD Conductive Vinyl Tiles offer the best balance of performance, maintainability, humidity independence, and total cost of ownership — with the unique advantage of a lifetime ESD warranty.

7. ESD Flooring Cost in Kedah — What to Expect

Pricing for Kedah high-tech factory flooring depends on floor area, substrate condition, required resistivity class, and whether raised flooring is involved. The following benchmarks reflect 2025–2026 market rates for professionally installed, certified ESD flooring in Malaysia.^[4]

Note on Total Project Cost: Beyond material pricing, budget for substrate preparation, primer, grounding grid, conductive adhesive, on-site testing by a certified ESD engineer, and a compliance certificate. TAKO provides all five components under a single turnkey contract — no hidden charges.

8. Common Problems That Cause ESD Flooring Failures in Kedah Factories

Even the best flooring system can fail if installed or maintained incorrectly. These are the most common issues TAKO’s engineers encounter at Kedah high-tech factories during periodic testing and re-certification visits:

1. Wrong Wax or Floor Polish

This is the single most frequent cause of audit failure. Standard commercial floor wax forms an insulative film with surface resistance exceeding 10¹¹ ohms — completely negating the ESD protection of the underlying tile. Only ESD-compatible maintenance products approved for your specific flooring system should ever be used.

Warning: A single application of standard floor wax to ESD vinyl tiles can push surface resistance to >10¹¹ ohms — causing immediate audit failure. Always use TAKO-recommended maintenance products.

2. Missing or Corroded Grounding Connections

ESD flooring without a continuous, low-resistance ground path to the building earth provides no ESD protection. Grounding connections must be inspected and tested at every periodic evaluation. In Kedah’s humid tropical climate, grounding lugs and copper tape connections are susceptible to oxidation if not properly protected.

3. Incorrect Installation on Raised Floors

Raised floor panels that are not electrically bonded to the pedestal grid, or ESD tiles laid over non-conductive adhesive on raised floors, create isolated “islands” of flooring with no ground path. TAKO’s installation team uses a dedicated conductive adhesive and performs resistance mapping before sign-off.

4. Low Humidity Events

Some ESD flooring types (particularly those relying on surface-layer conductivity) lose their ESD performance when relative humidity drops below 40% RH. TAKO’s pressed conductive vinyl tiles are manufactured with built-in conductive veins — their performance is completely humidity-independent, making them ideal for Kedah factories with strong air-conditioning.

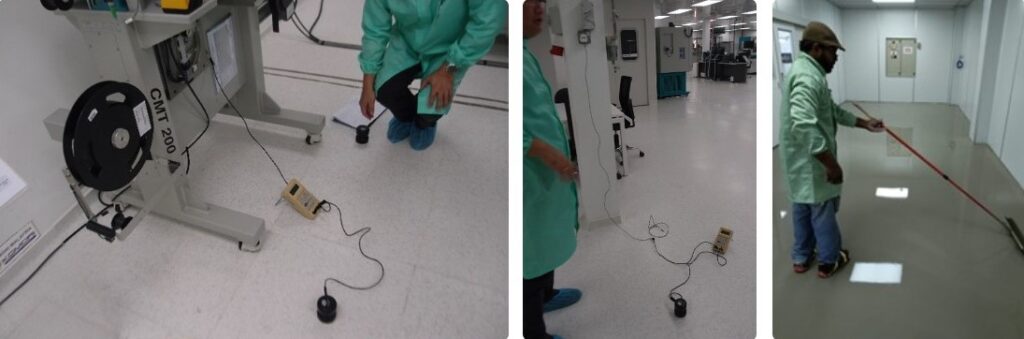

5. Skipping Periodic Testing

ESD flooring performance degrades over time due to wear, cleaning chemical accumulation, and mechanical damage. ANSI/ESD S20.20 recommends periodic re-testing. TAKO offers scheduled onsite and remote evaluation programs to keep Kedah factories audit-ready year-round.

9. Why Kedah Manufacturers Choose TAKO

With 40+ years of hands-on ESD expertise, TAKO is not simply a flooring supplier — we are a Total ESD Solution Provider for Malaysia’s most demanding high-technology environments. Here is what sets TAKO apart from generic flooring contractors operating in Kedah:

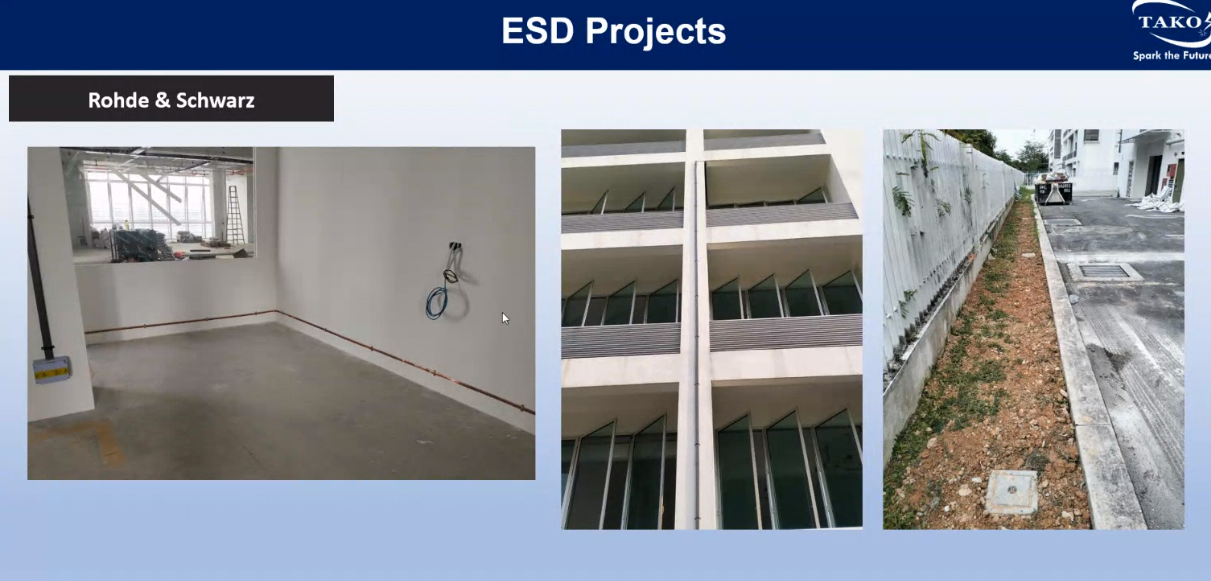

Notable TAKO project references include Petronas Research Center (Gurun), SONY EMCS (Bangi), TNB substations (100+ projects), Honda Alor Gajah Plant, and MRT Lines 1 & 2 — spanning more than four decades of certified high-technology flooring installations across Malaysia.

10. TAKO’s 5-Step Installation & Certification Process

TAKO delivers Kedah high-tech factory flooring through a rigorous end-to-end process that ensures compliance at every stage:

1. Site Audit & Consultation: TAKO’s engineers visit your Kedah facility to assess substrate condition, traffic loads, ESD sensitivity classification, and existing grounding infrastructure.
2. Solution Design: We recommend the optimal flooring system (tile type, adhesive, primer, grounding grid layout) and issue a detailed compliance-aligned specification document.
3. Professional Installation: Our certified installation team handles substrate preparation, primer application, conductive adhesive laying, tile/epoxy installation, grounding connection, and hot-air welding of joints.

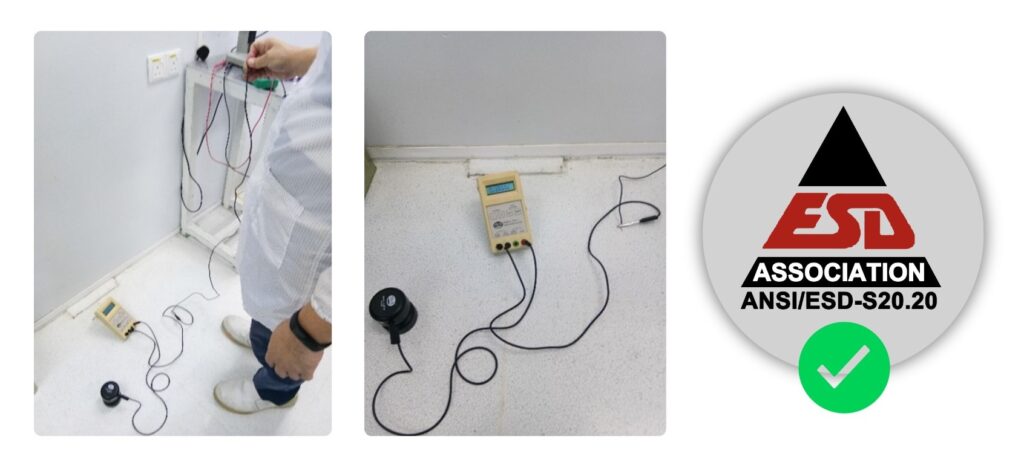

4. On-Site ESD Testing: An iNARTE-certified ESD engineer performs STM 7.1, STM 97.1, and STM 97.2 measurements in your presence, using calibrated instruments traceable to international standards.
5. Compliance Certification & Handover: TAKO issues a written compliance certificate against ANSI/ESD S20.20 or IEC 61340-5-1 (your choice), ready for customer or third-party audit submission.

11. Areas We Serve in Kedah and Across Malaysia

TAKO delivers Kedah high-tech factory flooring solutions across the entire state and beyond. Our primary service zones include:

• Kulim Hi-Tech Park (KHTP) — front-end semiconductor fabs, IC substrate facilities, aerospace electronics
• Kedah Science and Technology Park (Bukit Kayu Hitam) — R&D labs, advanced material pilot lines
• Gurun Industrial Area — automotive electronics, energy research facilities
• Sungai Petani — light electronics assembly, test & measurement facilities
• Alor Setar — logistics automation, industrial electronics

Beyond Kedah, TAKO serves high-tech factories in Penang (Bayan Lepas Free Industrial Zone), Selangor (Shah Alam, Subang, Cyberjaya), Johor (Iskandar Malaysia), and Singapore — making us the ideal single-partner solution for multisite manufacturers operating across Malaysia.

For ESD flooring specifications, cost estimates, and compliance guidance, visit our main resource hub: ESD Flooring Malaysia — TAKO’s Complete Guide or explore Malaysia’s #1 ESD Flooring Supplier

12. Frequently Asked Questions

What is Kedah high-tech factory flooring?

Kedah high-tech factory flooring refers to ESD-safe (electrostatic discharge) floor systems — including conductive vinyl tiles, ESD epoxy coatings, and raised access floors — installed in semiconductor, electronics, aerospace, and precision manufacturing facilities in Kedah, Malaysia. These systems protect sensitive components from static damage and must comply with IEC 61340-5-1 and ANSI/ESD S20.20 standards.

Do I need ESD flooring at Kulim Hi-Tech Park?

Yes. All tenants at KHTP manufacturing or handling ESD-sensitive devices (semiconductor wafers, PCBs, sensors, power modules) are required to maintain an ESD Control Program that includes certified ESD-safe flooring. Failure to comply can result in audit failures from OEM customers such as Infineon, Intel, or AT&S.

What is the cost of ESD flooring in Kedah?

ESD flooring costs in Kedah range from approximately RM 9–18 per square foot for static dissipative vinyl tiles, up to RM 35+ per square foot for cleanroom-grade epoxy systems. Total project cost includes substrate preparation, primer, grounding grid, testing, and certification. TAKO provides itemized quotes with no hidden charges.

How long does ESD flooring last in a high-tech factory?

TAKO’s pressed conductive vinyl tiles carry a lifetime warranty on ESD properties when maintained per recommended procedures. Physical wear life typically exceeds 10–15 years under normal manufacturing traffic. Epoxy systems typically require re-coating every 5–8 years depending on chemical exposure and foot traffic.

Which standard — ANSI/ESD S20.20 or IEC 61340 — applies to my Kedah factory?

Both may apply. American OEMs (Intel, Celestica) typically require ANSI/ESD S20.20, while European and Japanese OEMs (Infineon, AT&S) often require IEC 61340-5-1. TAKO can certify against either standard — or both — depending on your customer requirements.

Can ESD flooring be installed on a raised floor?

Yes. TAKO’s ESD conductive vinyl tiles are specifically designed to be compatible with raised floor systems. Conductive adhesive is applied to the panel surface, and grounding connections are made at the pedestal grid to ensure a continuous earth path.

How often should ESD flooring be tested in Kedah factories?

ANSI/ESD S20.20 recommends periodic re-verification at least annually — or whenever flooring is replaced, cleaned with new products, or a new tenant moves in. TAKO offers scheduled periodic testing and evaluation services for Kedah factories.

Why is my ESD floor failing after cleaning?

The most common cause is the application of standard floor wax or polish, which forms an insulative film (>10¹¹ ohms) over the ESD surface. Only ESD-compatible maintenance products approved for your specific flooring should be used. TAKO provides maintenance guidelines and approved product lists to all customers.

Does TAKO serve factories outside Kedah?

Yes. TAKO serves high-tech factories nationwide, including Penang (Bayan Lepas), Selangor (Shah Alam, Subang), Johor Bahru, and Singapore. We are Malaysia’s #1 ESD flooring specialist and a single-partner solution for multisite manufacturers.

13. Conclusion

Kedah is at the forefront of Malaysia’s semiconductor and electronics manufacturing boom. From Infineon’s world-class Kulim 3 SiC fab to Celestica’s aerospace electronics assembly lines, the facilities operating in KHTP and across the state represent some of the most demanding high-technology environments in Southeast Asia — and every one of them depends on a certified, reliable ESD-safe floor.

Choosing the right Kedah high-tech factory flooring partner is not a commodity procurement decision. It requires expertise in ESD science, knowledge of international compliance standards, and the technical capability to install, test, and certify a floor that protects your production assets and passes customer audits.

With 40+ years of proven expertise, humidity-independent conductive tile technology, iNARTE-certified testing, and a lifetime ESD warranty on our tiles, TAKO is the partner Kedah’s high-tech manufacturers trust — from initial site audit through to annual re-certification.

Whether you are setting up a new production line in Kulim, retrofitting an existing cleanroom in Gurun, or managing a multi-site semiconductor facility

across Penang and Selangor, TAKO delivers the ESD flooring solution that keeps your operation compliant, protected, and productive.
