Why ESD Flooring Solutions in Penang Free Industrial Zone Are Essential

ESD flooring solutions in Penang Free Industrial Zone are the single most critical ESD control measure for any electronics or semiconductor manufacturer operating in Bayan Lepas FIZ, Prai FIZ, or Seberang Perai Industrial Estate. Penang hosts some of the world’s most advanced manufacturing facilities — Intel, Motorola Solutions, Bosch, and Western Digital among them — all producing billions of ESD-sensitive components every year.

Electrostatic Discharge (ESD) is the invisible enemy of modern electronics manufacturing. A discharge as low as 100 volts — far below what a human can feel — permanently destroys IC gate oxides, degrades MEMS sensors, and causes latent failures that surface weeks later in the field. In a high-volume Penang FIZ production line, ESD does not just destroy individual components; it triggers rework cycles, quality escapes, and costly customer penalty clauses.ESD flooring provides the measurable, auditable pathway to ground that eliminates static before it reaches your product. Without it, no facility can achieve full compliance with ANSI/ESD S20.20 — the global benchmark that every OEM in Penang FIZ audits against.

What Is ESD Flooring? The Science Behind Static Control

ESD flooring is a specially engineered floor covering that provides a controlled electrical pathway for electrostatic charges to dissipate safely to earth ground. Unlike conventional vinyl, ceramic, or epoxy floors — which are electrically insulative and allow dangerous static to accumulate — ESD floors incorporate carbon-black compounds or conductive fibres that give them precise, stable electrical resistance.

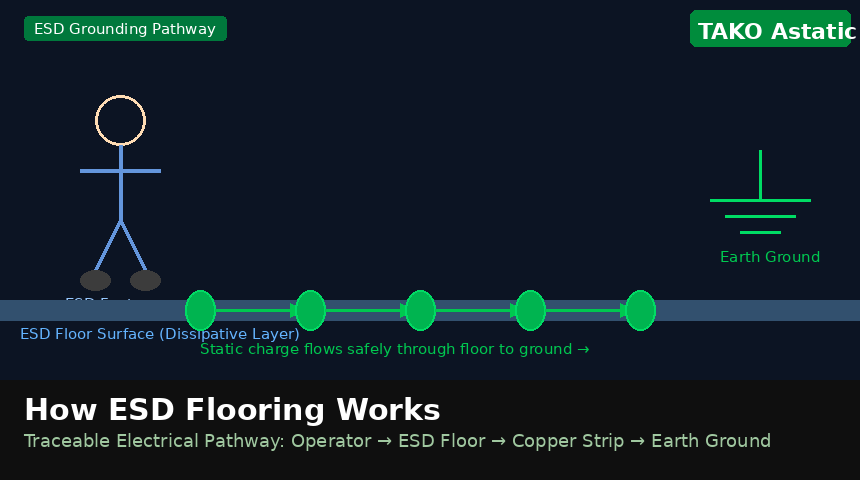

Figure 2: ESD grounding pathway — Operator → ESD Footwear → ESD Floor → Copper Ground Strip → Earth Ground

The Correct Resistance Range for ESD Flooring

ANSI/ESD S20.20 requires ESD flooring to have a resistance to ground between

The Correct Resistance Range for ESD Flooring (ANSI/ESD S20.20)

ANSI/ESD S20.20 requires ESD flooring to have a resistance to ground between 1 × 10⁶ Ω and 1 × 10⁹ Ω (the dissipative range):

• Below 10⁶ Ω (too conductive): charge drains too fast — mains voltage shock hazard
• Above 10⁹ Ω (insulative): charge drains too slowly — ESD damage can still occur
• Dissipative 10⁶ – 10⁹ Ω: charge safely dissipates in milliseconds — compliant & safe

TAKO verifies every installation against ANSI/ESD STM 7.1, STM 97.1, and STM 97.2, issuing a signed Certificate of Compliance and full test data for your customer and regulatory audit files.Learn more about TAKO’s ESD testing and compliance services: ESD Test & Measurement Equipment — tako.com.my

TAKO’s ESD Flooring Solutions for Penang Free Industrial Zone — Full Product Range

TAKO Astatic Technology manufactures, supplies, and installs a complete range of ESD flooring solutions for Penang Free Industrial Zone facilities. Each product is engineered to meet the specific demands of Penang’s electronics, semiconductor, and precision-manufacturing environments:

1. ESD Vinyl Floor Tiles — The Industry Standard

Figure 3: TAKO ESD Vinyl Floor Tiles — multi-colour, chemical-resistant, ANSI/ESD S20.20 certified

ESD Vinyl Floor Tiles are the most widely specified anti-static flooring for electronics manufacturing throughout Penang FIZ. TAKO’s tiles feature permanently conductive carbon-black compounds throughout the full tile body — not just a surface coating — ensuring consistent performance over the entire service life.

• Surface Resistivity: 1 × 10⁶ to 1 × 10⁹ Ω (ANSI/ESD STM 7.1)
• Tile Sizes: 600 × 600mm, 300 × 300mm (custom available)
• Colours: Slate grey, Oxford blue, forest green, speckled
• Durability: 15–20 year service life under normal factory traffic
• Chemical Resistance: IPA, acetone, flux cleaners, mild solvents
• Compliance: ANSI/ESD S20.20, STM 7.1, STM 97.1, STM 97.2, IEC 61340-5-1

Ideal for: SMT lines, PCB assembly areas, component storage, QC laboratories, cleanrooms, and operator walkways in Penang FIZ facilities.

➤  Explore the full range: esdfloor.tako.com.my

2. ESD PVC Floor Mat — Flexible Workstation Protection

Figure 4: TAKO ESD PVC Floor Mat — 2-layer construction with snap grounding, portable and retrofit-ready

ESD PVC Floor Mats provide targeted, cost-effective protection for individual workstations and portable EPA setups where permanent tile installation is not feasible.

• 2-layer construction: dissipative top surface + conductive bottom layer
• Surface Resistivity: 1 × 10⁶ to 1 × 10⁹ Ω
• Grounding: Snap connector to common point ground (CPG) via 1MΩ ground cord
• Sizes: 600×900mm, 900×1200mm, custom roll widths
• Anti-fatigue cushioned variant available

Ideal for: Rework stations, IQC/OQC inspection tables, repair benches, and flexible production cells.

➤  View TAKO workstation ESD products: tako.com.my/electorstatic-discharge-esd/workstation/

3. ESD Raised Floor System — Mission-Critical Environments

Figure 5: TAKO ESD Raised Floor System — semiconductor fab, data centres, ISO cleanrooms

For semiconductor wafer fabrication, ATE areas, server rooms, and ISO-classified cleanrooms, TAKO’s ESD Raised Floor Systems deliver simultaneous ESD control, cable management, and HVAC airflow management.

• Panel Options: Conductive (≤ 10⁶ Ω) or Dissipative (10⁶ – 10⁹ Ω)
• Height: Adjustable 150 – 600mm from structural floor
• Cleanroom: ISO Class 5–8 compatible
• Overlay: Compatible with TAKO vinyl tile overlay for enhanced finish

ESD Flooring Type Comparison: Vinyl Tiles vs PVC Mat

Still unsure which of our ESD flooring solutions for Penang Free Industrial Zone best fits your facility? TAKO offers a FREE on-site ESD evaluation — no obligation, no cost.

TAKO’s Complete ESD Flooring Installation Services in Penang FIZ

TAKO delivers a completely managed, end-to-end ESD flooring programme for Penang FIZ manufacturers:

Step 1: Free ESD Site Evaluation & Risk Assessment

TAKO’s NARTE-certified engineers conduct a full Electrostatic Risk Assessment of your facility, covering:

• Mapping of ESD-sensitive process zones and high-risk areas
• Measurement of existing floor resistivity across all production areas
• Humidity level assessment and seasonal variation impact analysis
• Review of current EPA setup against ANSI/ESD S20.20 requirements

➤  Request your free assessment:

Step 2: Professional Supply & Installation

Figure 6: TAKO professional installation — surface preparation, copper grounding strips, tile laying

TAKO’s trained installation teams handle the entire process:

• Surface preparation: grinding, levelling, and priming existing sub-floor
• Copper earthing tape grounding grid installation beneath tiles
• ESD-safe adhesive application and precision tile laying
• Grounding grid connection to building’s dedicated earth ground point

Step 3: On-Site Resistivity Testing & Compliance Certificate

Figure 7: On-site floor resistivity testing per ANSI/ESD STM 7.1 — signed compliance certificate issued

Every TAKO installation is completed with comprehensive on-site testing:

• Point-to-point surface resistance across the full floor area (STM 7.1)
• Resistance to ground (Rg) at multiple grid positions
• Walking body voltage measurement with operator + ESD footwear (STM 97.2)
• Signed Certificate of Compliance with full test data for your audit files

Step 4: Periodic Inspection & Compliance Monitoring

• Annual or bi-annual on-site resistivity re-testing and recertification
• Spot-repair and remediation for degraded floor sections
• Audit support for IECQ QC 080000 and customer ESD programme audits

ESD Compliance Requirements for Penang Free Industrial Zone Manufacturers

Manufacturers in Penang FIZ must satisfy stringent ESD compliance requirements from multiple overlapping frameworks. TAKO’s installations address all of them:

• ANSI/ESD S20.20 — the core ESD control programme standard audited by global OEMs
• IEC 61340-5-1 — European ESD protection benchmark (required for EU-market products)
• IECQ QC 080000 — Hazardous Substance Process Management (covers ESD controls)
• ISO 9001:2015 — QMS documentation requires written ESD process controls
• Customer OEM programmes: Intel, Bosch, Motorola, Western Digital supplier requirements

How to Choose the Best ESD Flooring Solutions for Penang Free Industrial Zone Factories

Selecting the correct ESD flooring solutions for Penang Free Industrial Zone requires evaluating these key factors:

1. ESD Sensitivity Class — What ESDS classification (Class 0–3) are your most sensitive components?
2. Traffic & Load — Foot traffic only, or forklift trucks, AGVs, and heavy trolleys?
3. Existing Floor Condition — Concrete, screed, or existing tile? Surface prep requirements?
4. Cleanroom Classification — ISO Class 5–8 or conventional factory environment?
5. Chemical Exposure — IPA, acetone, flux removers, or other solvents on the floor?
6. Humidity Control — Stable air-conditioned RH or seasonal humidity variation?
7. Installation Downtime — Maximum window available without stopping production?

TAKO’s NARTE-certified engineers produce a written ESD Flooring Specification Report recommending the most cost-effective, compliance-ready solution for your specific facility.

FAQ: ESD Flooring Solutions Penang Free Industrial Zone

How long does ESD floor installation take for a 1,000 m² production floor?

Typically 3–5 working days, including surface preparation, copper grounding grid installation, tile laying, adhesive curing, and post-installation testing. TAKO schedules phased installation to minimise production downtime.

Can ESD floor tiles be installed over our existing epoxy floor?

In most cases, yes — provided the existing floor is structurally sound, level, and free from contamination. TAKO’s team conducts a surface assessment before installation. Where floors are uneven or contaminated, grinding and priming may be required.

How often should ESD flooring be tested after installation?

ANSI/ESD S20.20 recommends periodic testing at least annually. TAKO recommends bi-annual testing for high-traffic areas and quarterly monitoring where Class 0 ESDS devices are handled. TAKO offers a scheduled inspection service for all Penang FIZ clients.

Does TAKO serve factories outside Bayan Lepas FIZ?

Yes. TAKO serves clients across all of Penang’s industrial areas — Bayan Lepas FIZ, Prai FIZ, Bukit Minyak, Penang Science Park, and Batu Kawan Industrial Park — as well as nationwide across Malaysia and throughout the ASEAN region.

Is a TAKO ESD floor certificate accepted by international OEM customers?

Yes. TAKO’s test reports reference ANSI/ESD STM 7.1, STM 97.1, and STM 97.2 — the exact measurement methods specified in ANSI/ESD S20.20. These are accepted by OEM ESD programme auditors from semiconductor, automotive, aerospace, and defence sectors.
