ESD Footwear Compatible Flooring
In industrial environments where electronic components are manufactured, assembled, or handled, electrostatic discharge (ESD) protection is non-negotiable. Even a minor static shock—imperceptible to humans—can damage sensitive electronic components worth thousands of dollars. Creating a complete ESD-protected environment requires attention to both footwear and flooring, as these elements work together to safely channel static electricity away from sensitive equipment.
As Malaysia’s electronics industry thrives, ESD Protection is crucial for manufacturing facilities, assembly plants, and data centers in key states like Selangor, Penang, and Johor. With the sector driving a significant portion of the GDP, effective ESD management ensures both safety and business continuity.
ESD footwear only works effectively when paired with the right flooring, yet this crucial connection is often overlooked, risking inadequate protection. This guide covers five proven flooring solutions to help businesses safeguard electronic assets and maintain workplace safety.
ESD Flooring Experts at Your Service!
Get a free 1-to-1 consultation with our specialists today
Table of Contents
Understanding ESD Footwear Compatible Flooring Risks in Malaysian Industrial Environments
- Tropical Climate Impact: Malaysia’s fluctuating humidity levels between monsoon and dry seasons affect static electricity build-up, making ESD protection essential.
- Static Charge Generation: During drier months (January to March), humidity can drop below 60%, allowing static charges of up to 35,000 volts—far exceeding the 100-volt threshold that can damage sensitive electronics.
- Economic Importance: The electrical and electronics (E&E) sector contributes 39.4% of Malaysia’s total exports (MIDA), making ESD protection critical for both operational reliability and national economic stability.
ESD Footwear Compatible Flooring: Essential ESD Protection Requirements
Before diving into flooring solutions, it’s important to understand why the relationship between ESD footwear and flooring matters.
The ESD Protection Chain: ESD Footwear Compatible Flooring
ESD protection works as a chain—electricity needs a continuous path to ground. This chain includes:
- The human body (source of static electricity)
- ESD footwear (conductor)
- ESD flooring (conductor)
- Grounding system (path to earth)
If any link in this chain fails, the entire protection system becomes compromised. ESD shoes alone cannot protect your facility if they’re paired with incompatible flooring.
ESD Shoes: The Critical First Link
ESD shoes are specialized footwear designed with conductive materials in the sole that allow static electricity to flow from the wearer’s body to the floor. These typically come in three varieties:
- Conductive footwear: Provides the lowest resistance path (<1×10^5 ohms) for rapid static discharge
- Dissipative footwear: Offers controlled discharge (between 1×10^5 and 1×10^9 ohms)
- Static-shielding footwear: Provides moderate protection while offering additional safety features
For ESD shoes to function properly, they must make consistent contact with flooring that can accept and channel the electrical charge. This is where compatible flooring becomes essential.
Table: 5 Effective Solutions for ESD Footwear Compatible Flooring
ESD Footwear Compatible Flooring Solutions
Discover the perfect balance between functionality, durability, and cost-effectiveness for your electrostatic discharge protection needs.
| Flooring Solution | Resistance Range (ohms) | Installation | Durability | Maintenance | Cost |
|---|---|---|---|---|---|
| ESD Vinyl Tile | 1×10⁶ – 1×10⁹ | Moderate | 7-15 years | Low | $$ |
| ESD Epoxy Coating | 1×10⁶ – 1×10⁹ | High | 5-10 years | Low-Moderate | $$$ |
| ESD Carpet Tile | 1×10⁶ – 1×10⁹ | Low | 5-7 years | Moderate | $$ |
| Conductive Rubber Flooring | 1×10⁴ – 1×10⁶ | Moderate | 15-20 years | Low | $$$$ |
| ESD Laminate Systems | 1×10⁶ – 1×10⁹ | Low | 3-7 years | Low | $ |
The 5 Solutions for ESD Footwear Compatible Flooring Needs
Let’s explore the five most effective flooring solutions that work seamlessly with ESD footwear:

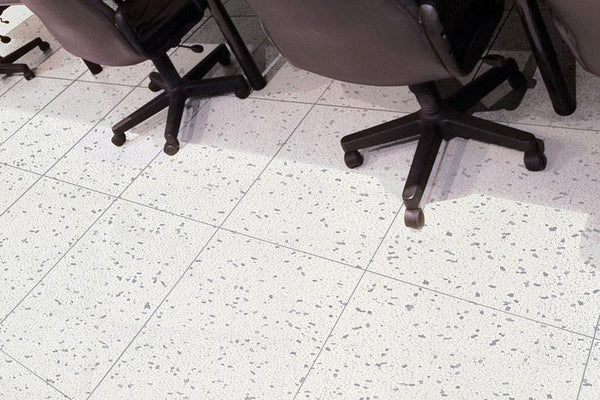

1. ESD Vinyl Tile
ESD vinyl tile represents one of the most versatile and widely adopted flooring solutions for environments requiring electrostatic discharge protection. These specially formulated tiles contain conductive elements throughout their composition rather than just on the surface, ensuring consistent electrical properties even as the floor wears over time.
Key Benefits of ESD Footwear Compatible Flooring
- Consistent performance: Unlike surface treatments that can wear away, the conductive properties of ESD vinyl tile extend throughout the material’s thickness.
- Modular installation: Individual tiles can be replaced if damaged without disrupting the entire floor.
- Chemical resistance: Highly resistant to many industrial chemicals and solvents.
- Comfort underfoot: Provides more cushioning than epoxy or concrete, reducing worker fatigue when paired with ESD shoes.
Installation Considerations
ESD vinyl tile requires installation over a properly prepared subfloor using conductive adhesive. The entire system must be connected to an appropriate grounding point approximately every 1,000 square feet. For optimal performance with ESD footwear, tiles should be installed by contractors familiar with ESD flooring requirements.
Maintenance Requirements
One of the advantages of ESD vinyl tile is its relatively simple maintenance routine. Regular cleaning with non-waxing, non-polishing cleaners specifically formulated for ESD surfaces is recommended. Avoid standard floor waxes or polishes, as these can interfere with the floor’s conductive properties and compromise the effectiveness of ESD shoes.
Best Applications
ESD vinyl tile works exceptionally well in electronics manufacturing, assembly areas, testing facilities, and cleanrooms where workers wear ESD footwear daily. Its balance of durability, performance, and moderate cost makes it suitable for most industrial applications requiring static control.
2. ESD Epoxy Coating
For facilities seeking a seamless flooring solution that offers superior chemical resistance and durability, ESD epoxy coatings provide an excellent option. These specialized coatings transform existing concrete floors into ESD-compliant surfaces through a multi-layer application process.
Key Benefits of ESD Footwear Compatible Flooring
- Seamless surface: No joints or seams eliminate places where dirt, dust, or contaminants can gather.
- Excellent chemical resistance: Highly resistant to harsh chemicals, acids, and solvents.
- Customizable conductivity: Can be formulated to meet specific resistance requirements.
- Long-term value: While installation costs are higher, the durability often results in lower lifetime cost.
Installation Considerations
ESD epoxy coating requires significant floor preparation, including diamond grinding or shot blasting to ensure proper adhesion. The installation process typically involves:
- Thorough cleaning and preparation of the concrete substrate
- Application of a primer layer
- Application of a conductive base coat
- Application of the ESD topcoat
- Installation of grounding points
The entire process requires skilled professionals and generally takes several days, during which the facility area must remain unused.
Maintenance Requirements
Properly installed ESD epoxy floors require minimal maintenance—typically just regular cleaning with pH-neutral cleaners. Avoid harsh chemicals or abrasive cleaning methods that could damage the conductive properties. Periodic resistance testing is recommended to ensure the floor maintains its ESD properties and remains compatible with ESD footwear.
Best Applications
ESD epoxy coating is ideal for electronics manufacturing facilities, aerospace production, military applications, and other environments where chemical resistance and durability are paramount. The seamless nature makes it particularly suitable for cleanroom environments where particulate control is essential.
3. ESD Carpet Tile
For environments where comfort, noise reduction, and aesthetics are important alongside ESD protection, ESD carpet tile offers an attractive solution. These specialized carpet tiles incorporate conductive fibers throughout the pile and backing to create a consistent path to ground when used with ESD footwear.
Key Benefits of ESD Footwear Compatible Flooring
- Superior comfort: Provides the most comfortable walking surface for workers wearing ESD shoes.
- Noise reduction: Significantly dampens sound in busy work environments.
- Thermal insulation: Provides warmer floor surface in cold climates.
- Aesthetics: Available in various colors and patterns to enhance workplace appearance.
Installation Considerations
ESD carpet tile installation is relatively straightforward, requiring less preparation than epoxy systems. The tiles are installed over a conductive adhesive or tape grid system that connects to appropriate grounding points. The modular nature allows for easy replacement of damaged sections without disrupting the entire floor.
Maintenance Requirements
Regular vacuuming with a beater-bar-free vacuum cleaner is essential to remove particulates that could interfere with conductivity. Periodic extraction cleaning should be performed using cleaning agents specifically formulated for ESD carpet. Avoid standard carpet cleaning chemicals, which may leave residues that impair the carpet’s conductive properties.
Best Applications
ESD carpet tile works well in electronics laboratories, test facilities, dispatch areas, and control rooms where comfort and noise control are priorities. It’s particularly suitable for areas where workers stand for extended periods wearing ESD footwear, as the cushioning reduces fatigue.
4. Conductive Rubber Flooring
For environments requiring the highest level of ESD protection combined with exceptional durability, conductive rubber flooring provides an outstanding solution. This premium flooring option delivers superior electrical properties and remarkable resilience against heavy traffic and equipment loads.
Key Benefits of ESD Footwear Compatible Flooring
- Exceptional durability: Can withstand heavy traffic, rolling loads, and impacts better than most ESD flooring options.
- Superior electrical properties: Typically offers the most consistent conductive performance over time.
- Excellent slip resistance: Provides added safety in work environments.
- Impact absorption: Reduces noise and provides shock absorption for dropped items.
Installation Considerations
Conductive rubber flooring is available in both sheet and tile formats. The installation process requires a perfectly smooth subfloor and the use of conductive adhesives. Seams must be properly treated to maintain electrical continuity across the entire floor surface. Grounding points should be installed according to manufacturer specifications, typically every 1,000 square feet.
Maintenance Requirements
Conductive rubber flooring requires regular cleaning with pH-neutral cleaners specifically formulated for rubber surfaces. Avoid harsh chemicals, oil-based products, or solvents that could damage the rubber. The floor should be periodically tested to verify its electrical properties remain within specifications for optimal performance with ESD footwear.
Best Applications
Conductive rubber flooring is ideal for high-traffic manufacturing areas, sensitive electronics production, military applications, and environments where static control is mission-critical. Its premium price point is justified in facilities where equipment protection and uncompromising static control are essential.
5. ESD Laminate Systems
For facilities seeking a more economical ESD flooring solution or temporary installations, ESD laminate systems offer a viable alternative. These systems typically consist of conductive underlayment combined with specialized laminate materials to create an ESD-protective surface.
Key Benefits of ESD Footwear Compatible Flooring
- Cost-effective: Generally the most affordable permanent ESD flooring option.
- Quick installation: Can often be installed with minimal facility downtime.
- Floating installation: Some systems can be installed without adhesives, making them suitable for temporary applications.
- Low maintenance: Requires simple cleaning procedures without specialized products.
Installation Considerations
ESD laminate systems vary significantly between manufacturers, but most involve a conductive underlayment connected to ground points with a specialized laminate floor installed above. Some systems use interlocking components that can be installed without permanent adhesives, making them suitable for leased facilities or temporary production areas.
Maintenance Requirements
Most ESD laminate systems require only regular cleaning with a slightly damp mop using mild cleaners. Avoid excessive water, which can penetrate seams and damage the system’s electrical properties. As with all ESD flooring, periodic testing is recommended to ensure compatibility with ESD footwear continues to meet specifications.
Best Applications
ESD laminate systems are well-suited for electronics repair facilities, temporary production areas, small assembly operations, and facilities with limited budgets. While not as durable as other options, they provide adequate protection for many applications when properly maintained and used with appropriate ESD footwear.
Exploring Uncharted Territory in ESD Footwear Compatible Flooring: Key Insights and Opportunities
Exploring Uncharted Territory in ESD Flooring
Discover emerging trends and opportunities in the ESD flooring industry that can transform your workspace
Tailored solutions addressing Malaysia’s unique humidity and temperature challenges, ensuring consistent ESD performance year-round.
Learn More
Budget-friendly alternatives like static-dissipative vinyl specifically designed for small and medium enterprises with limited resources.
Learn More
Innovative solutions that combine safety and aesthetics for hybrid office spaces where protection and professional appearance matter equally.
Learn More
Eco-conscious options featuring low-VOC materials and recyclable components that don’t compromise on static dissipation performance.
Learn More
Comprehensive upkeep strategies for high-traffic areas, extending the lifespan and performance of your ESD flooring investment.
Learn More
Flexible solutions designed for non-traditional layouts and unique spaces where standard ESD flooring options fall short.
Learn More
Comprehensive compliance checklist tailored to Malaysian regulations, ensuring your facility meets all local ESD safety standards.
Learn MoreKey Considerations for ESD Footwear Compatible Flooring in Malaysia
When evaluating ESD flooring options for Malaysian facilities, several factors must be considered:
Electrical Properties: Must meet ANSI/ESD S20.20 resistance standards.
Durability: Withstands 24/7 industrial operations and heavy traffic.
Maintenance: High humidity affects cleaning and longevity.
Installation: Retrofit vs. new construction challenges.
Budget: Balance upfront costs with long-term value.
Region-Specific ESD Footwear Compatible Flooring Solutions for Malaysia: Insights & Applications
Region-Specific ESD Flooring Solutions for Malaysia
Tailored static control systems for Malaysia’s diverse industrial landscape
ESD Footwear Compatible Flooring: Making the Right Selection for Your Facility
When selecting ESD flooring compatible with your footwear program, consider these key factors:
1. Resistance Requirements
- Electronics Manufacturing: Requires 1×10⁶ to 1×10⁹ ohms for proper static control.
- Explosives Handling: Needs <1×10⁶ ohms for rapid discharge.
- Medical Environments: Often require 1×10⁸ to 1×10¹⁰ ohms for controlled static dissipation.
2. Traffic & Durability Needs
- Heavy machinery: Opt for durable rubber or epoxy flooring.
- High foot traffic: Consider replaceable vinyl or carpet tiles.
- Rolling equipment: Seamless surfaces like epoxy work best.
3. Environmental Factors
- Chemical exposure: Use epoxy or rubber solutions.
- Moisture concerns: Avoid carpet options.
- Temperature fluctuations: Choose stable materials.
4. Budget Considerations
- Factor in installation complexity, downtime, and maintenance costs.
- Consider lifespan, replacement costs, and long-term value.
Implementation Best Practices for ESD Footwear Compatible Flooring
Installing ESD flooring is only the first step. To ensure ongoing compatibility with ESD footwear and continuous protection for your sensitive components:
1. Testing & Verification
- Resistance Testing: Measure point-to-point and point-to-ground resistance quarterly.
- System Testing: Evaluate the entire ESD system biannually.
- Footwear Testing: Require daily ESD shoe testing before entering protected areas.
2. Maintenance Protocols
- Use ESD-compatible cleaning products and train staff on proper maintenance.
- Document cleaning frequencies and methods to ensure compliance.
3. Employee Training
- Educate workers on proper ESD shoe usage and care.
- Emphasize keeping floors clean and free from contaminants.
- Train employees on footwear testing procedures.
Final Thoughts
Selecting the right ESD flooring ensures effective static control, protecting product quality and operational efficiency. Options like ESD vinyl, epoxy, carpet tile, rubber, and laminate suit different environments. A complete system—integrating footwear, flooring, testing, and maintenance—prevents damage to sensitive components, ensuring long-term protection and compliance with industry standards.
